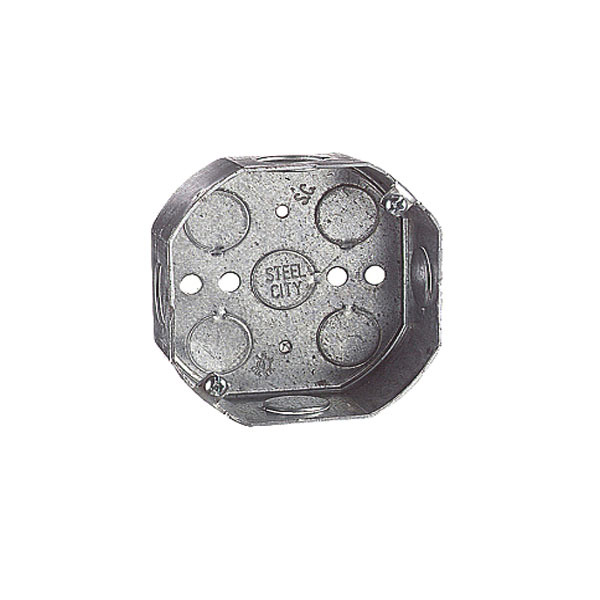

Octagon Box; 1-1/2 In.; 4; 5; Steel

OVERVIEW

• Material/Finish
• AISI/SAE 1008
• Pre-galvanized G60, 0.60 oz/sq ft1
• Thickness: 0.0625" minimum
• Concentric and Eccentric Knockouts
• Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 V. Unless otherwise noted all concentric or eccentric knockouts are 1/2" - 3/4" combinations.
• Use in Fire-Rated Assemblies
• Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls. For additional information refer to the UL guide card information for metallic outlet boxes, QCIT.
• Groundskeeper Raised Ground Boss
• Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8" long green ground screw to be threaded into box without contacting mounting surface. Other boxes provided with flat ground tapped hole, except Plenum Boxes. Compliances and
• Certifications
• UL Standard: 514A, 514B, 514D
• UL Listed: E2527
• NEMA: FB-1, OS-1
